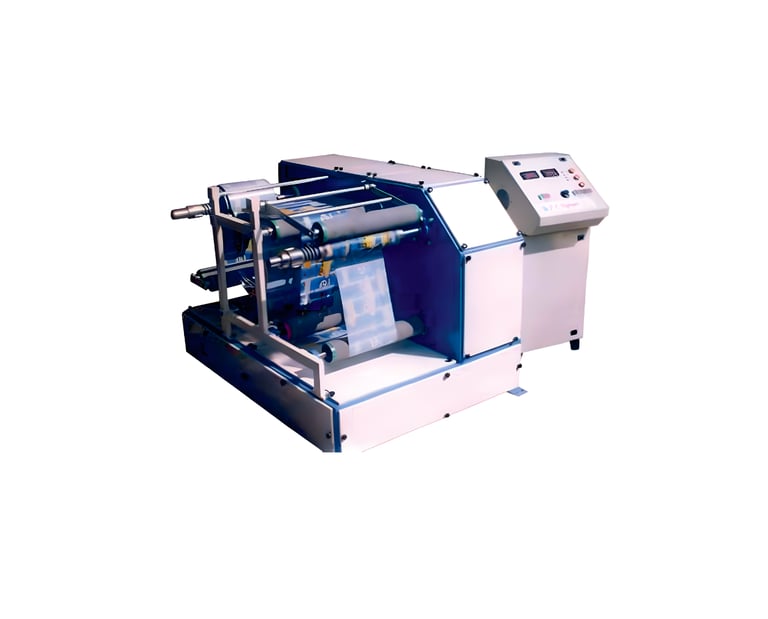

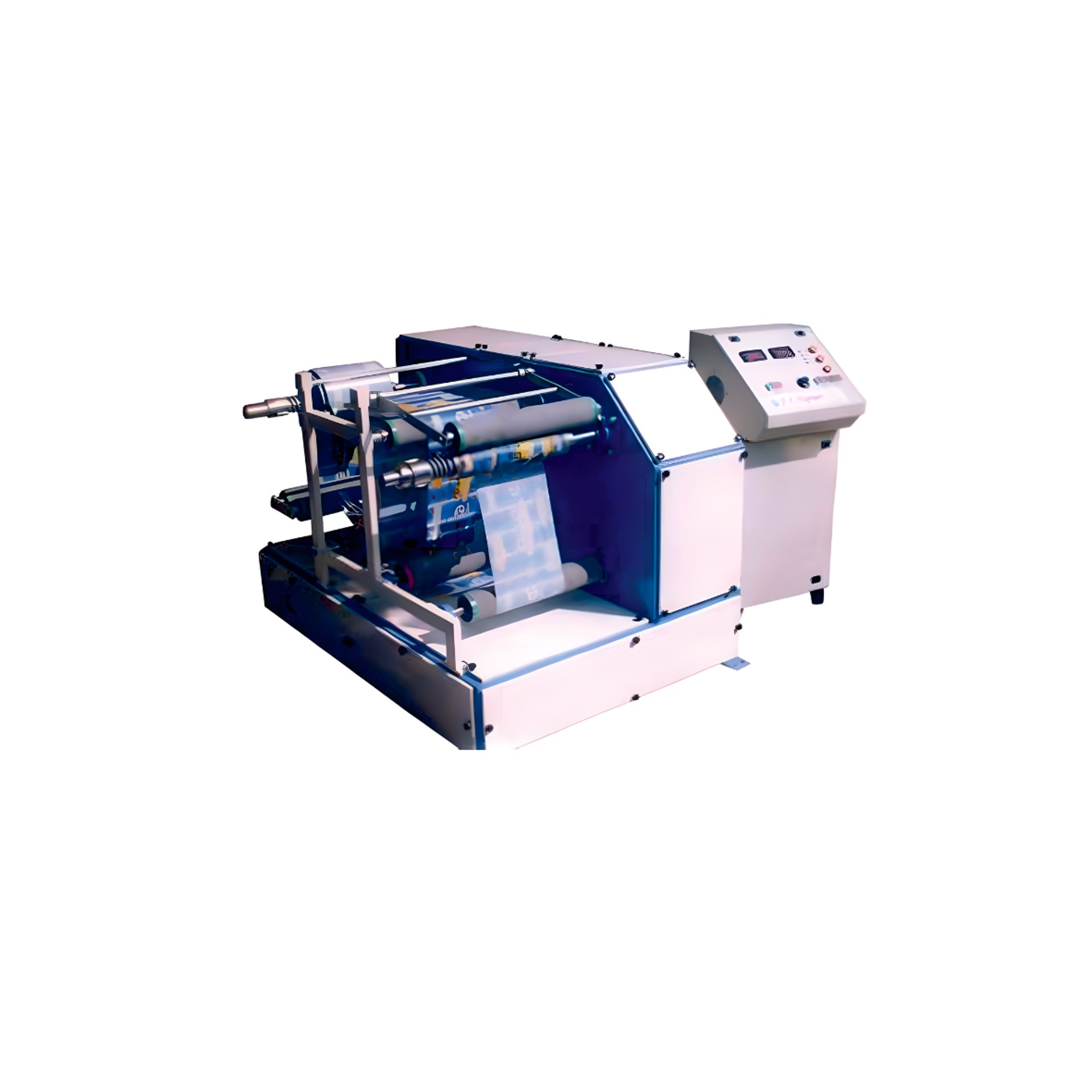

Winder Rewinder Machine

Winder Rewinder Machine

Our Winder Rewinder Machine to provide high-speed, precision winding and slitting for various flexible packaging materials, ensuring uniform tension and perfect edge alignment. This versatile system allows us to help you transform large parent rolls into smaller, finished rolls with consistent quality, maximizing your production efficiency and reducing material waste.

Winder Rewinder Machine Specifications

• Usage: We recommend this system for flexible materials such as plastic films (BOPP, PET, PE), paper, laminates, and aluminum foil.

• Max Web Width: We offer configurations typically ranging from 600mm to 1300mm (custom widths available).

• Max Unwind Diameter: Designed to handle parent rolls up to 1000mm in diameter.

• Max Rewind Diameter: Capable of producing finished rolls up to 600mm in diameter.

• Machine Speed: This system maintains a high-speed operation of 150 to 300 meters per minute (depending on material type).

• Tension Control: Equipped with a Magnetic Powder Brake and Clutch or an automatic PLC-based AC drive system for precise tension management.

• Slitting Unit: Features adjustable rotary cutters or razor blades for clean, accurate edge trimming and multi-slit capabilities.

• Power Requirements: The unit typically operates on AC 415 V / 50 Hz (3-phase).
