Sealers

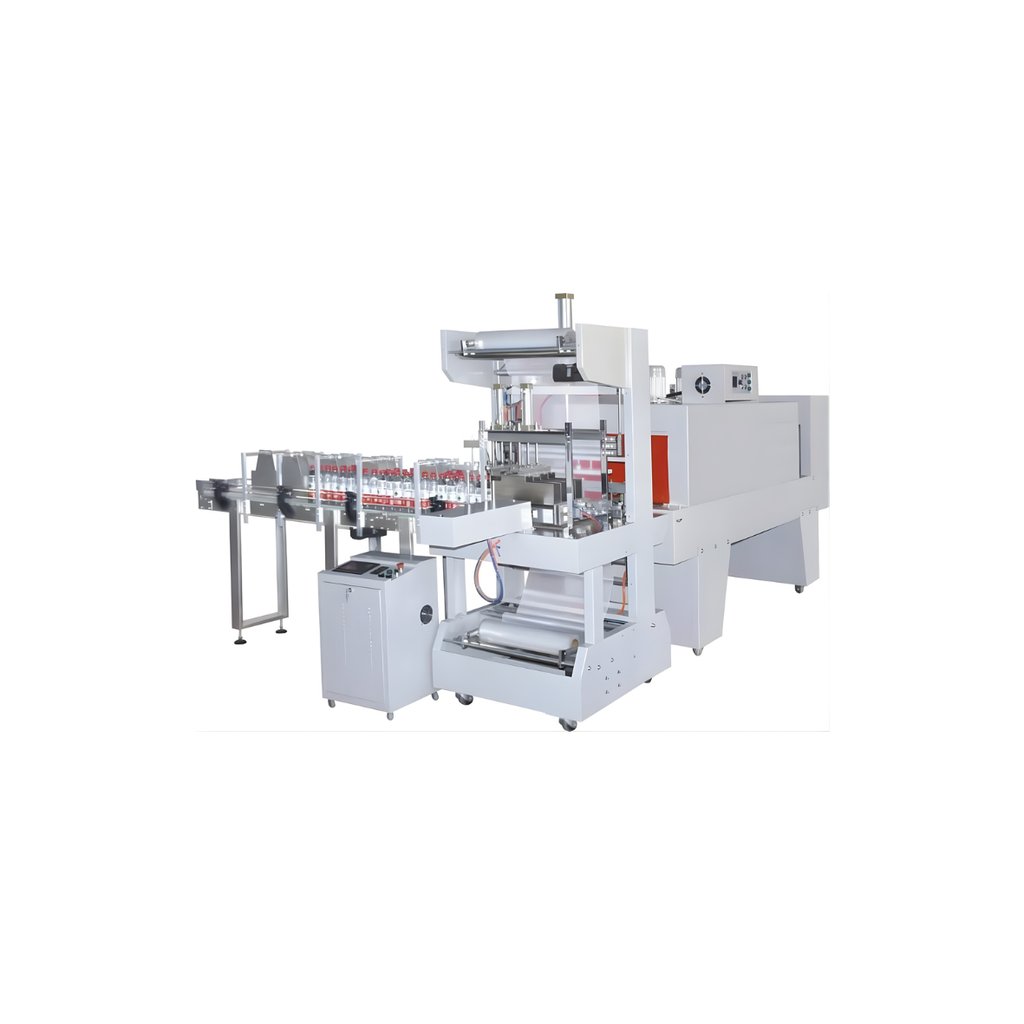

Automatic Web Sealer with Shrink Tunnel

Our Web Sealer with Shrink Tunnel to provide a heavy-duty, semi-automatic solution for bundling products like bottles and cans with high-strength PE film. By integrating a precise sleeve-sealing unit with a high-temperature shrink tunnel, we help you create stable, transport-ready multipacks that offer excellent protection and product visibility.

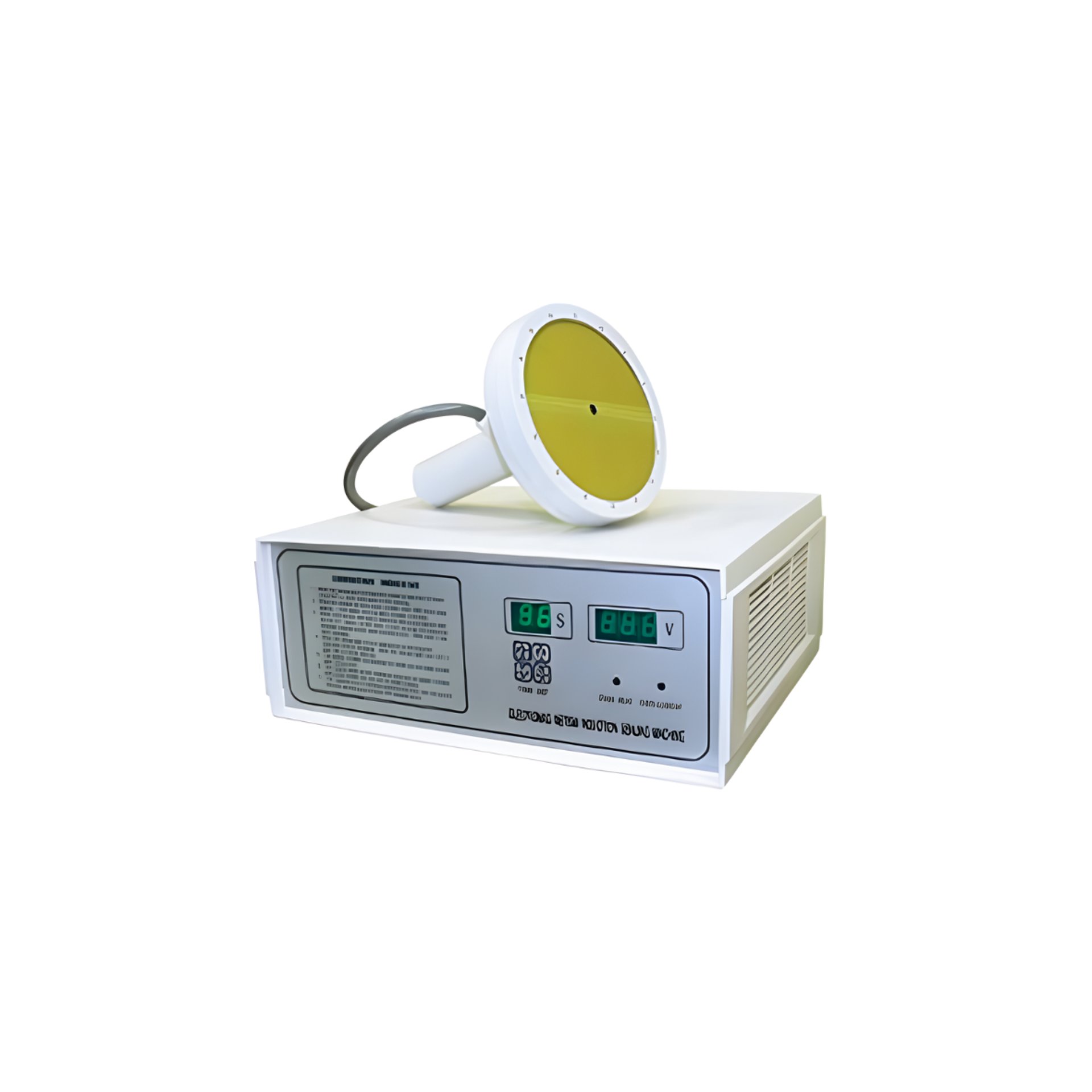

Manual Induction Sealer

Our Manual Induction Sealer to provide a compact and efficient solution for creating hermetic, tamper-evident seals on plastic and glass bottles. This handheld system allows us to help you ensure product freshness and prevent leakage for small-scale production runs in the pharmaceutical, cosmetic, and food industries.

Our Automatic Induction Sealer to provide a high-speed, non-contact sealing solution that creates hermetic, tamper-evident foil seals on containers as they move along your production line. This advanced system allows us to help you ensure maximum product integrity and leak prevention at scale, making it ideal for the pharmaceutical, chemical, and beverage industries.

Automatic Induction Sealer

Web Sealer with Shrink Tunnel Specifications

• Usage: We recommend this system for bundling heavy items such as mineral water bottles, soft drinks, beer crates, and industrial components.

• Production Speed: This system maintains a steady output of 5 to 10 packs per minute (depending on product size).

• Sealing Length: We offer a standard sealing bar length of 600mm to 800mm to accommodate various pack widths.

• Max Packing Height: Designed to handle product heights up to 300mm to 400mm.

• Shrink Film Type: Specifically engineered for heavy-duty LDPE (Polyethylene) shrink films.

• Tunnel Dimensions: Features an elongated heating zone (typically 1200mm to 1800mm) to ensure uniform shrinkage of thick PE film.

• Power Requirements: The unit operates on AC 415 V / 3-Phase with a total power load of 15 KW to 25 KW.

• Cooling System: Equipped with a high-velocity cooling fan at the tunnel exit to instantly stabilize the pack for immediate handling.

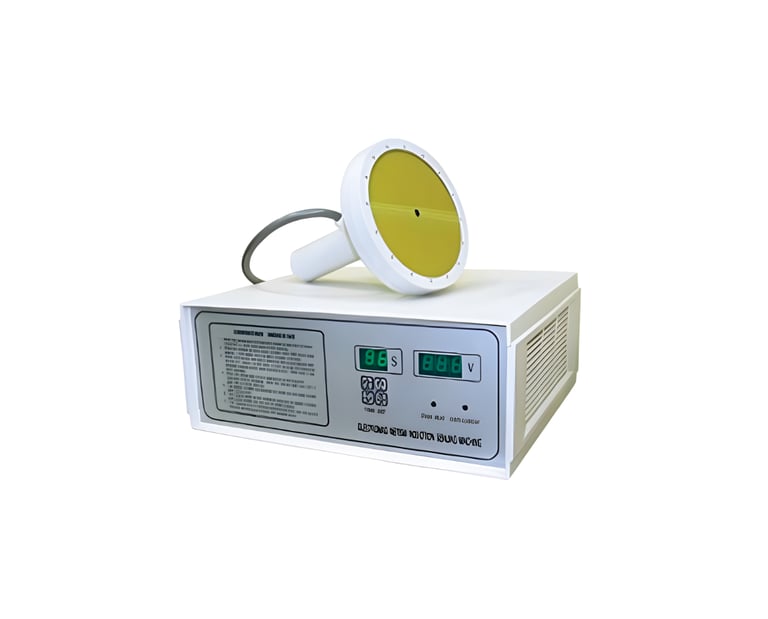

Manual Induction Sealer Specifications

• Usage: We recommend this device for induction-ready foil seals on PET, HDPE, PP, and glass containers.

• Sealing Diameter: We offer a versatile sealing range typically from 20mm to 100mm.

• Production Speed: This system is operator-dependent, typically reaching 5 to 15 bottles per minute.

• Sealing Time: Features an adjustable digital timer, generally ranging from 0.1 to 3.9 seconds.

• Power Requirements: The unit operates on AC 220 V / 50 Hz with a power output of 500W to 1000W.

• Control Interface: Equipped with a user-friendly digital display for precise power and time adjustments.

• Portability: Designed with a lightweight, ergonomic handle for ease of use during extended manual sealing sessions.

Automatic Induction Sealer Specifications

• Usage: We recommend this system for high-volume sealing of induction-ready foil liners on PET, HDPE, LDPE, PP, and glass bottles.

• Production Speed: This system maintains a high-speed output of 40 to 120 bottles per minute, depending on bottle and cap size.

• Sealing Diameter: We offer a versatile sealing range typically from 15mm to 120mm (model dependent).

• Bottle Height: Equipped with a height-adjustable stand to accommodate containers from 50mm to 350mm.

• Cooling System: Features an integrated Air Cooling or Water Cooling system to ensure stable, continuous operation during long production runs.

• Power Requirements: The unit operates on AC 220 V / 50 Hz with a power output ranging from 1.5 KW to 3 KW.

• Safety Features: Includes sensors for "no-foil" detection and bottle rejection, ensuring every product leaves the line perfectly sealed.

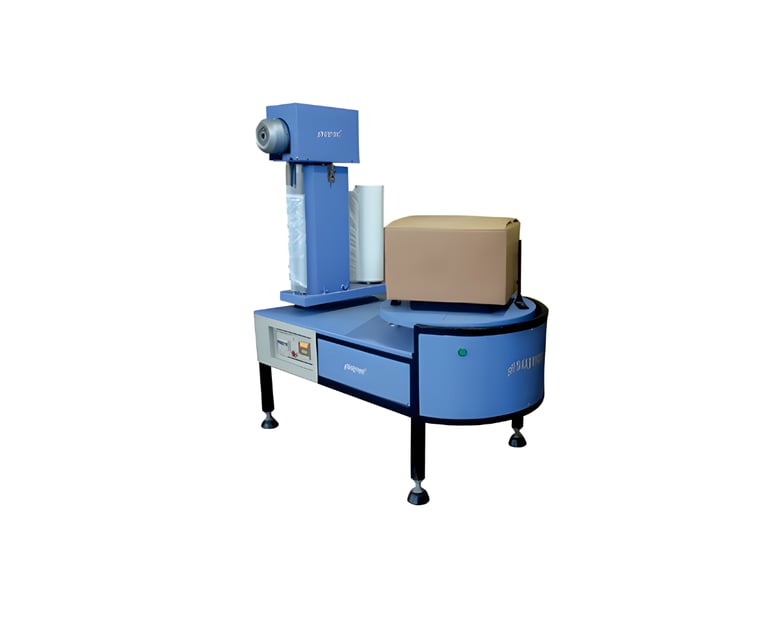

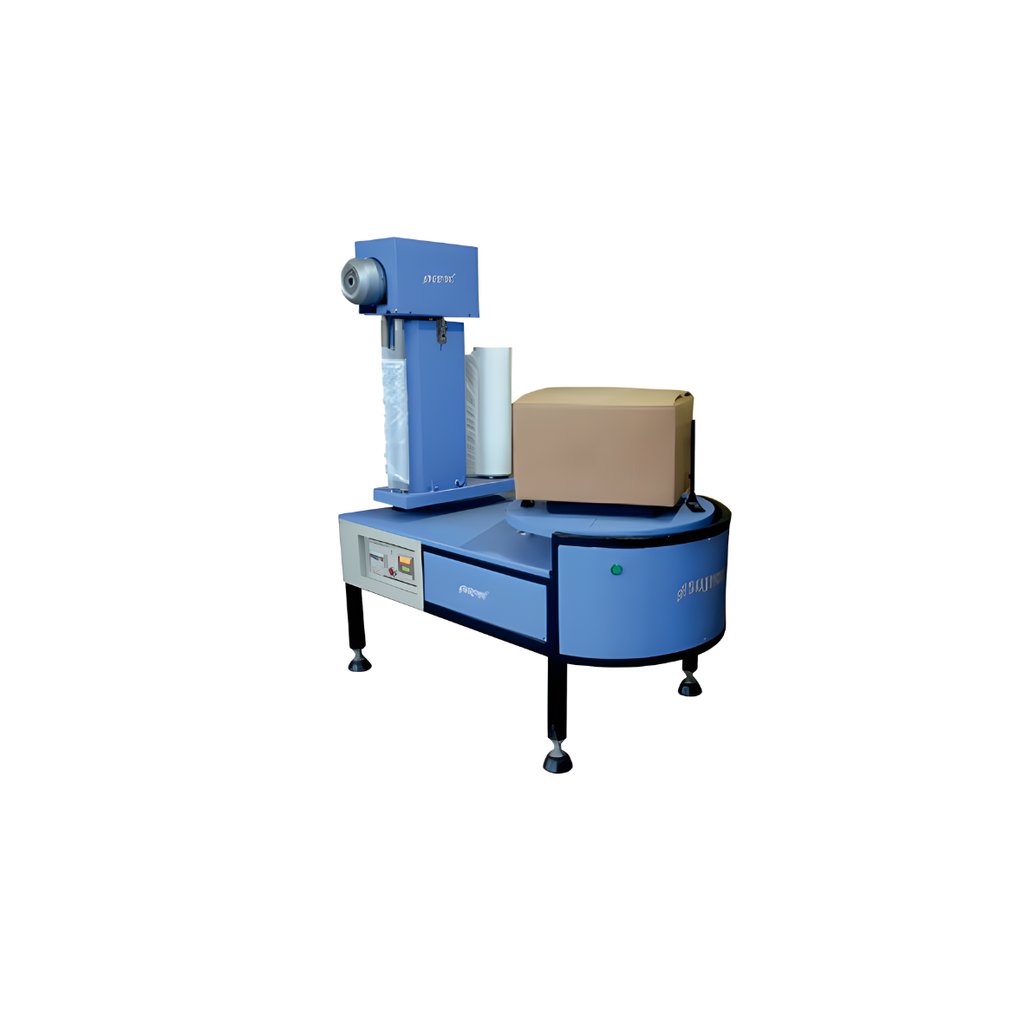

Box Stretch Wrapping Machine

Our Box Stretch Wrapping Machine to provide a secure and uniform protective layer for individual boxes, protecting them from dust, moisture, and tampering. By automating the rotating stretch-wrap process, we help you achieve a professional, retail-ready finish that ensures your products remain pristine throughout the shipping and handling process.

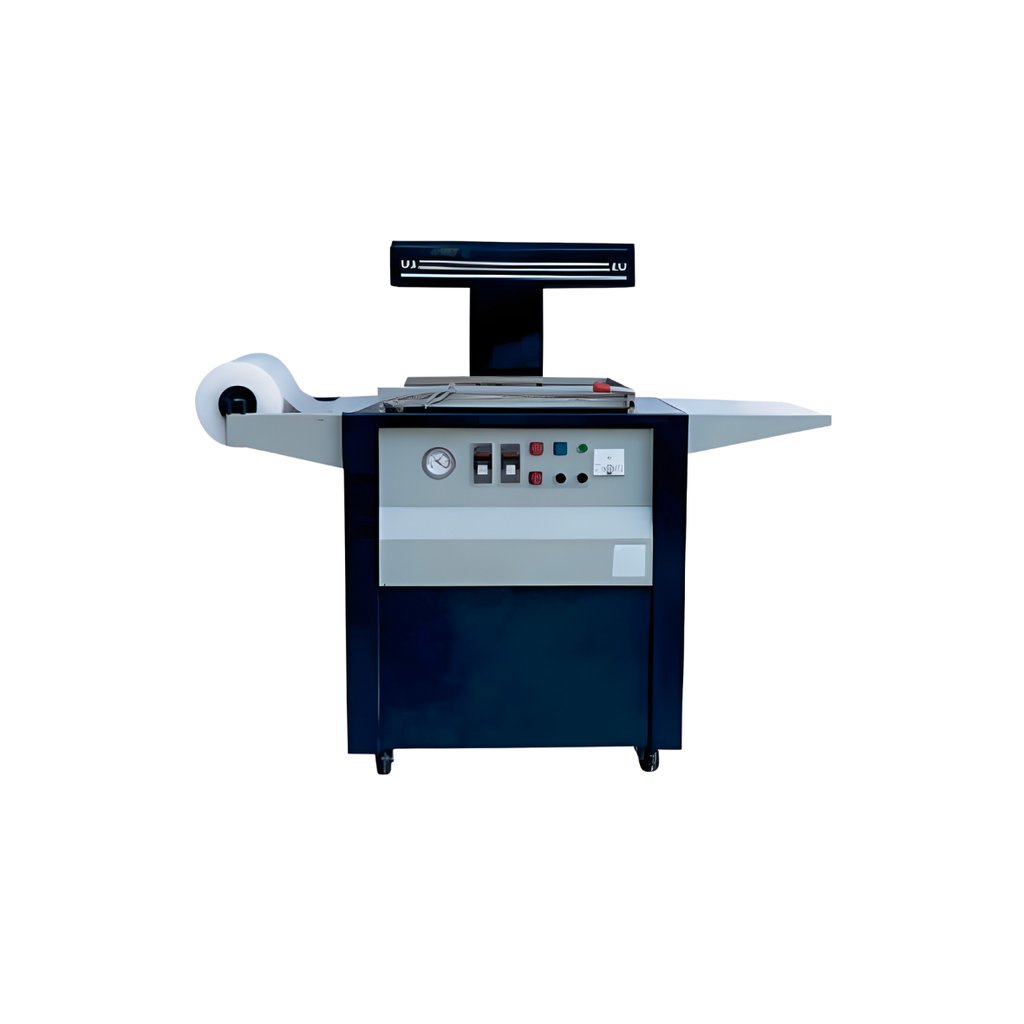

Skin Packaging Machine

Our Skin Packaging Machine to provide a high-visibility, "second skin" seal that secures your product directly to a backing card for a premium retail presentation. By tightly contouring the film to the product's shape, we help you eliminate internal movement while protecting against dust and tampering, making it ideal for hardware, cosmetics, and automotive parts.

Box Stretch Wrapping Machine Specifications

• Usage: We recommend this system for wrapping individual cartons, luggage, or stacked items in the logistics, electronics, and e-commerce industries.

• Production Speed: This system maintains a steady output of 20 to 40 boxes per hour depending on the operator and wrapping cycles.

• Max Wrapping Size: We offer a versatile capacity typically up to $600 \times 600 \times 600$ (LxWxH) mm.

• Max Load Weight: Designed to support a turntable capacity of up to 80 kg to 100 kg.

• Turntable Speed: Operates at a variable speed of 0 to 20 RPM.

• Film Material: Specifically engineered for LLDPE stretch film (standard width: 250mm to 500mm).

• Power Requirements: The unit operates on AC 220 V / 50 Hz with a low power load of approximately 0.5 KW to 1 KW.

• Control System: Features an adjustable timer and tension control to customize the number of wraps and film tightness.

Skin Packaging Machine Specifications

• Usage: We recommend this system for hardware tools, stationery, electronics, automotive spare parts, and premium consumer goods.

• Packing Area: We offer a generous sealing area typically ranging from $390 \times 540$ mm to $450 \times 600$ mm.

• Production Speed: This system maintains a steady output of 2 to 4 cycles per minute, depending on the operator and product complexity.

• Film Type: Specifically designed for PVC or PE Skin Packaging Film that adheres perfectly to coated cardboard.

• Heating System: Equipped with high-efficiency infrared heaters and an adjustable heating timer for uniform film softening.

• Vacuum System: Features a powerful built-in vacuum pump to ensure a tight, bubble-free contour around the product.

• Power Requirements: The unit typically operates on AC 220 V / 380 V with a power load of 4 KW to 6 KW.

• Construction: Built with a heavy-duty steel frame and a heat-resistant working table for long-term industrial durability.

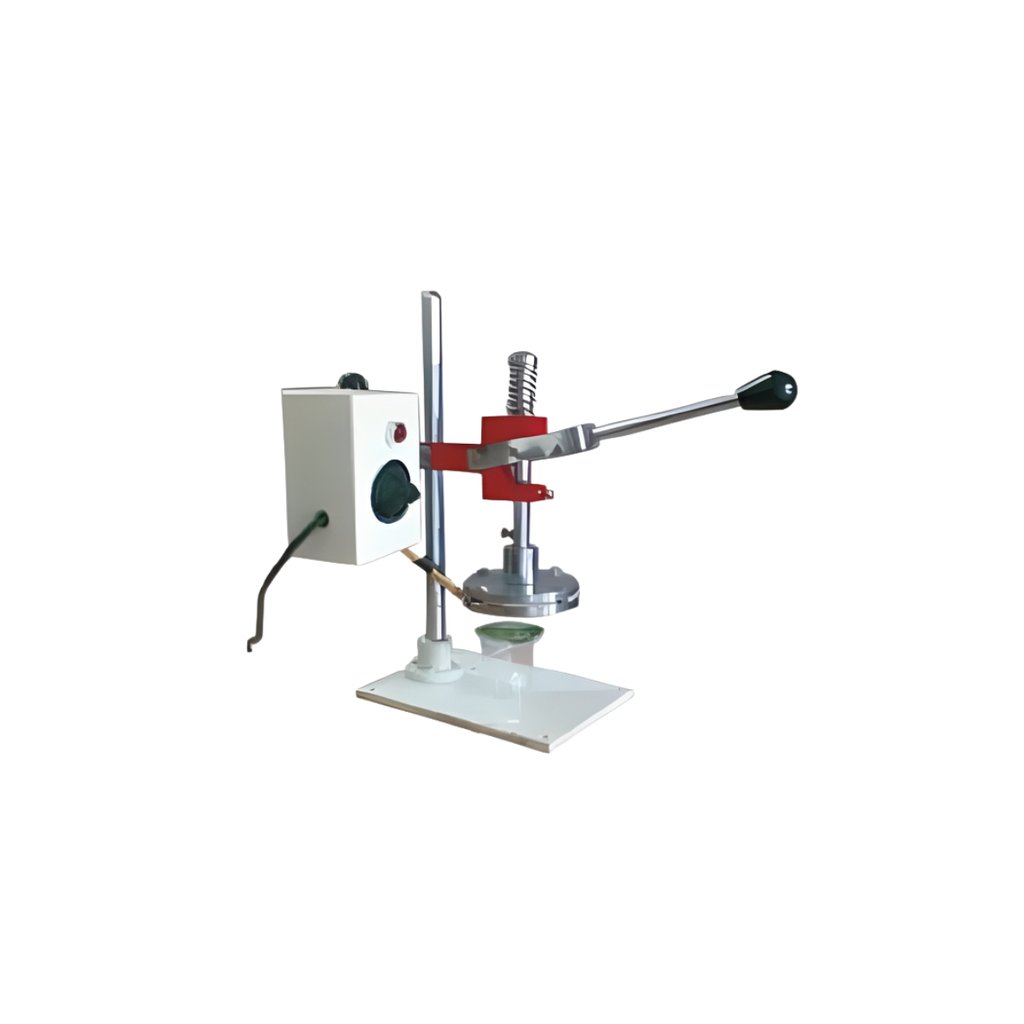

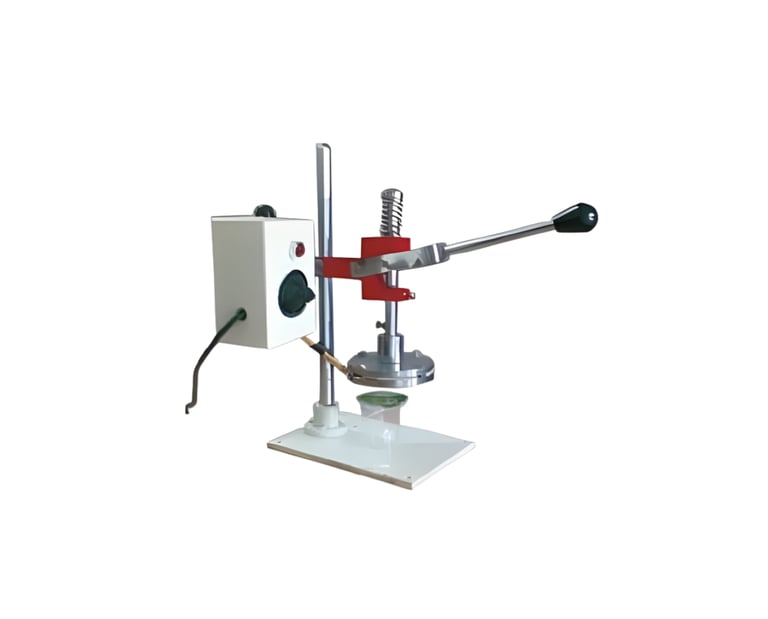

Foil Sealers

Foil Sealers are designed to create strong, airtight seals on bottles and containers using induction heating technology. They ensure leak-proof, tamper-evident packaging and help extend product shelf life, making them ideal for food, pharmaceutical, and chemical industries.
