Automatic Horizontal Packing Machine

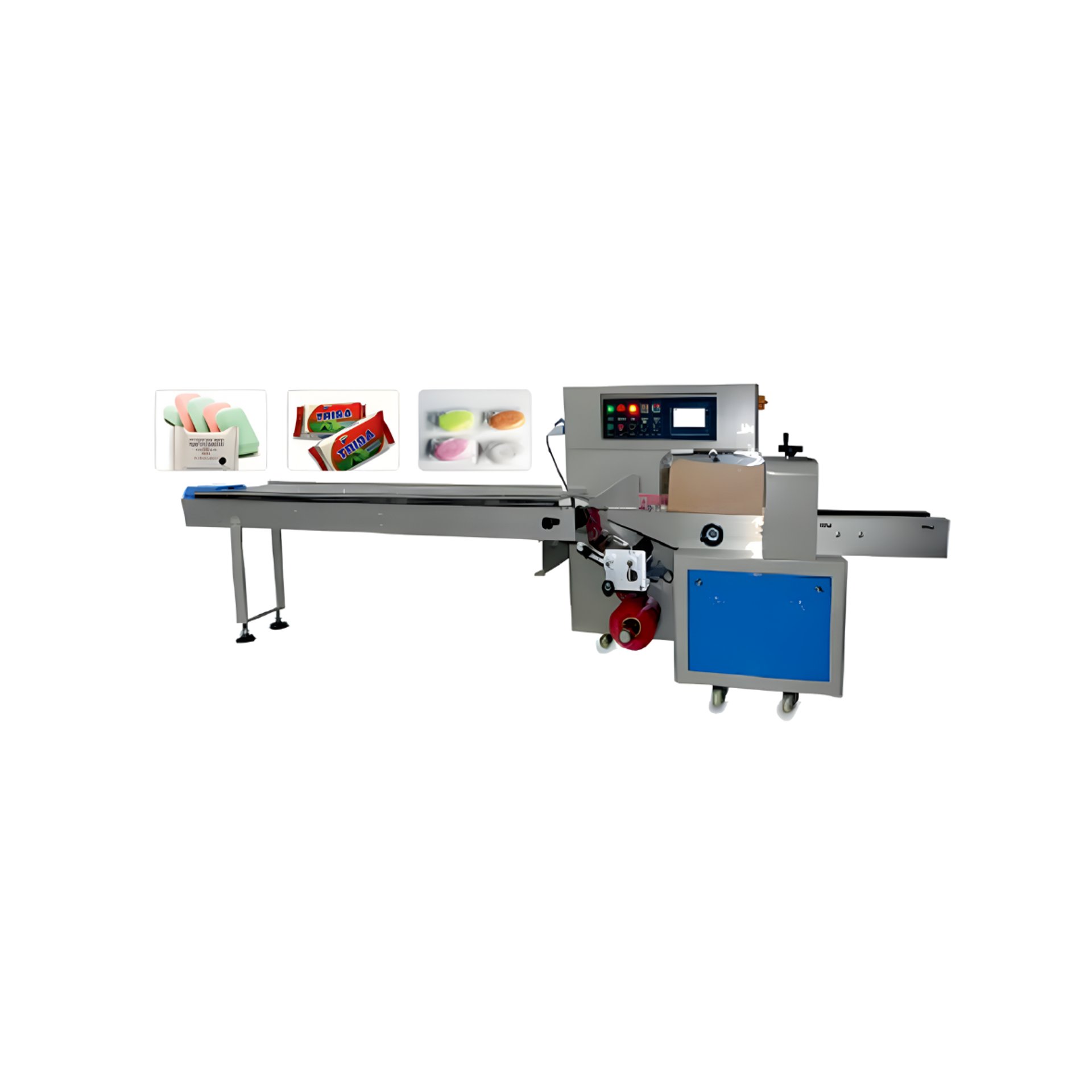

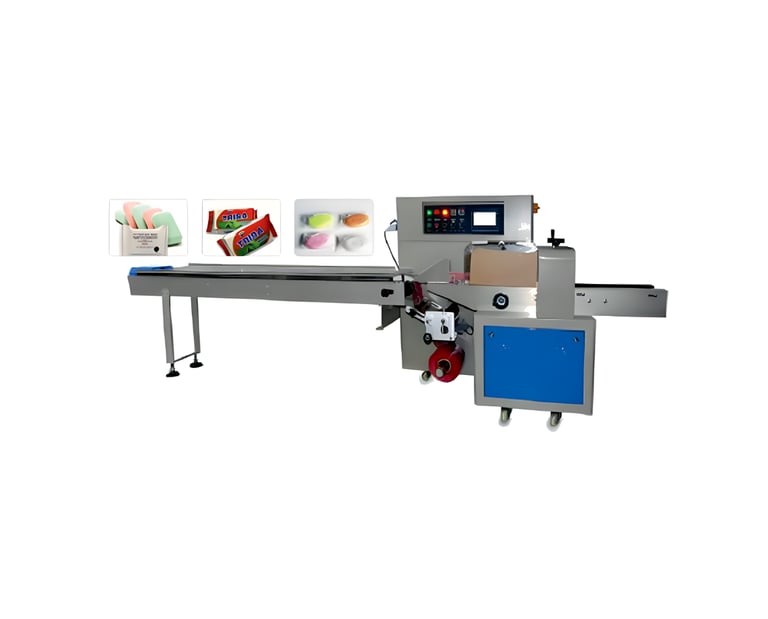

Pillow Type Automatic Horizontal Packing Machine

Our Automatic Horizontal Pillow Type Packing Machine (Flow Wrap) to provide high-speed, professional wrapping for a vast range of solid products, from bakery items to soaps. By automating the flow-wrap process, we help you achieve an airtight, consistent finish that maximizes shelf life and enhances your product's shelf appeal.

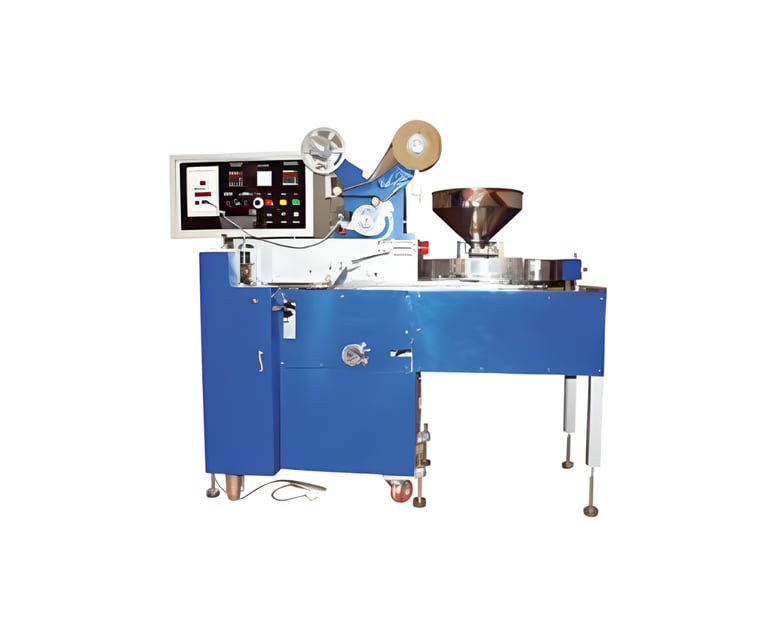

Candy Wrapping Machine

Our Horizontal Candy Wrapping Machine to provide high-speed, airtight protection for individual treats while maintaining the visual appeal your brand deserves. This system allows us to help you scale your confectionery production with seamless automation, ensuring every candy is wrapped with precision and care.

Horizontal Pillow Type Packing Machine Specifications

• Usage: We recommend this system for solid items like biscuits, chocolates, soaps, instant noodles, IV fluid bottles, bakery products, and small hardware components.

• Production Speed: This high-speed machine maintains an output of 40 to 120 packs per minute (depending on product size).

• Bag Dimensions:

  • Length: 60 to 300 mm.

  • Width: 30 to 130 mm.

  • Height: 5 to 50 mm.

• Power Requirements: The unit operates on AC 220 V / 50 Hz with a power load of approximately 3 KW.

• Machine Weight: Approx. 600 kg to 800 kg depending on the configuration.

Candy Wrapping Machine (Horizontal Type) Specifications

• Usage: We recommend this system for hard candies, toffees, lozenges, and small chocolate bars.

• Production Speed: This high-speed machine maintains an impressive output of 100 to 300 pieces per minute.

• Product Dimensions:

  • Length: 15 to 50 mm.

  • Width: 15 to 30 mm.

  • Height: 5 to 20 mm.

• Power Requirements: The unit operates on AC 220 V / 50 Hz with a power load of approximately 3 KW.

• Film Material: Compatible with various heat-sealable laminated films to ensure a fresh, professional finish.
