L Sealing Machines

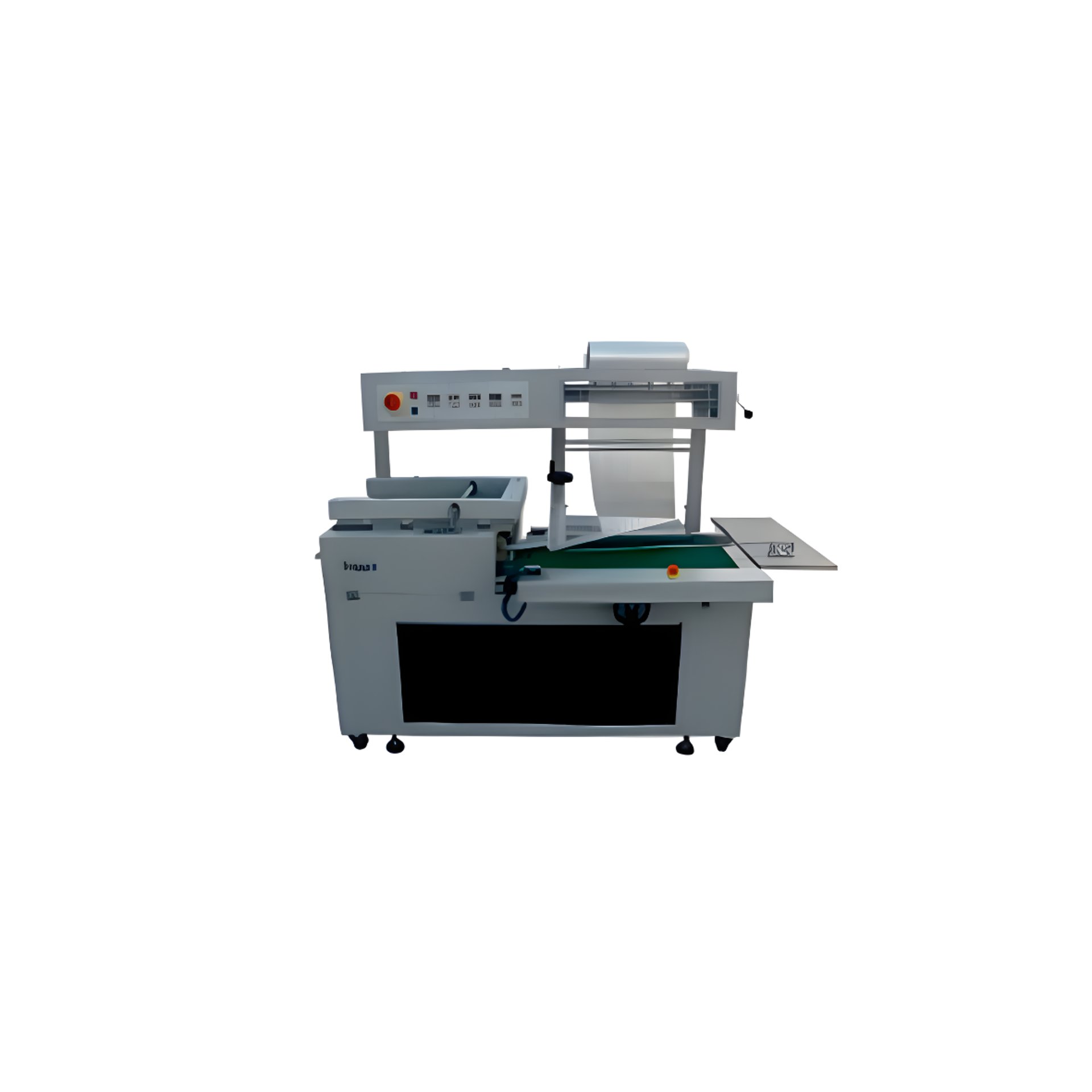

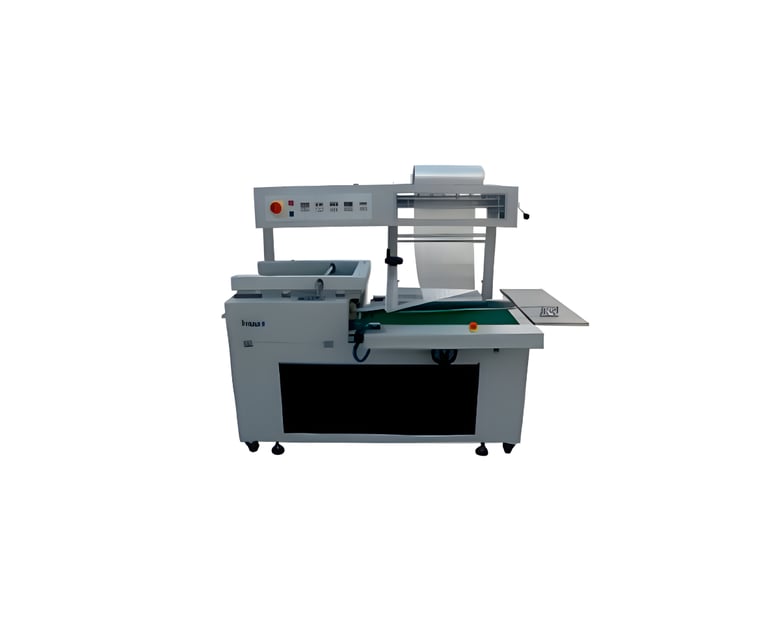

Automatic L Seal Cutting Machine

The Automatic L-Seal Cutting Machine is designed for efficient shrink film sealing and cutting, providing clean, secure packaging with high speed and precision. It is ideal for dust-proof and moisture-resistant packing of various products in food, pharmaceutical, and industrial sectors.

Manual L Sealer Cutter

The Manual Sealer Cutter Machine is a compact and efficient solution for sealing and cutting shrink film for packaging applications. It is ideal for food, pharmaceutical, surgical, automobile, and toy industries, providing clean seals with adjustable heating control.

The Double Chamber Vacuum Machine is designed for high-volume vacuum sealing, ensuring products stay fresh by preventing moisture, oxidation, and contamination. It is ideal for food items such as peanuts, khajoor, khakhara, and other snack products requiring extended shelf life

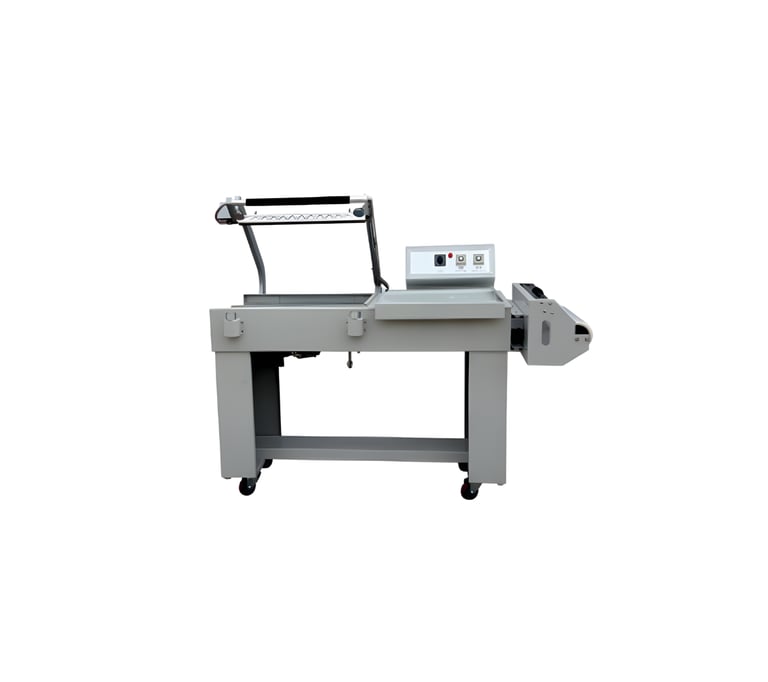

Semi Automatic L Sealer Machine

Key Specifications of Automatic L Seal Cutting Machine -

• Model: BSL-5640LG

• Voltage: 220V / 50–60Hz

• Air Pressure Required: 5–8 kg/cm³

• Power: 1.8 kW

• Capacity: 0–25 pcs/min

• Max Packing Size: W+H < 450mm, W < 400mm, H < 120mm, L < 350mm

• Max Sealing & Cutting Size: 500 × 400 mm

• Machine Dimensions: 1770 × 830 × 1600 mm

• Net Weight: 300 kg

Key Specifications -

Model PS-501

• Voltage: 220V / 50Hz

• Power: 1 kW

• Max Sealing Size: 500 × 350 mm

• Heating Time: 0–2 seconds (adjustable)

• Machine Size: 950 × 550 × 370 mm

• Weight: 23 kg

Key Specifications of Semi Automatic L Sealer Machine -

• Voltage: AC 220V / 50Hz (3 Phase)

• Motor Power: 1500W

• Sealing Power: 600W

• Sealing Length: 500mm

• Sealing Width: 10mm

• Sealing Bars: 1 per chamber

• Ultimate Vacuum Pressure: 1

• Vacuum Pump Rate: 20 × 2 m³/h

• Chamber Size: 555 × 500 × 180mm

• Machine Size: 1690 × 710 × 1055mm

• Net Weight: 220kg

Model PS-601

• Voltage: 220V / 50Hz

• Power: 2.4 kW

• Max Sealing Size: 600 × 500 mm

• Heating Time: 0–2 seconds (adjustable)

• Machine Size: 1100 × 820 × 420 mm

• Weight: 35 kg

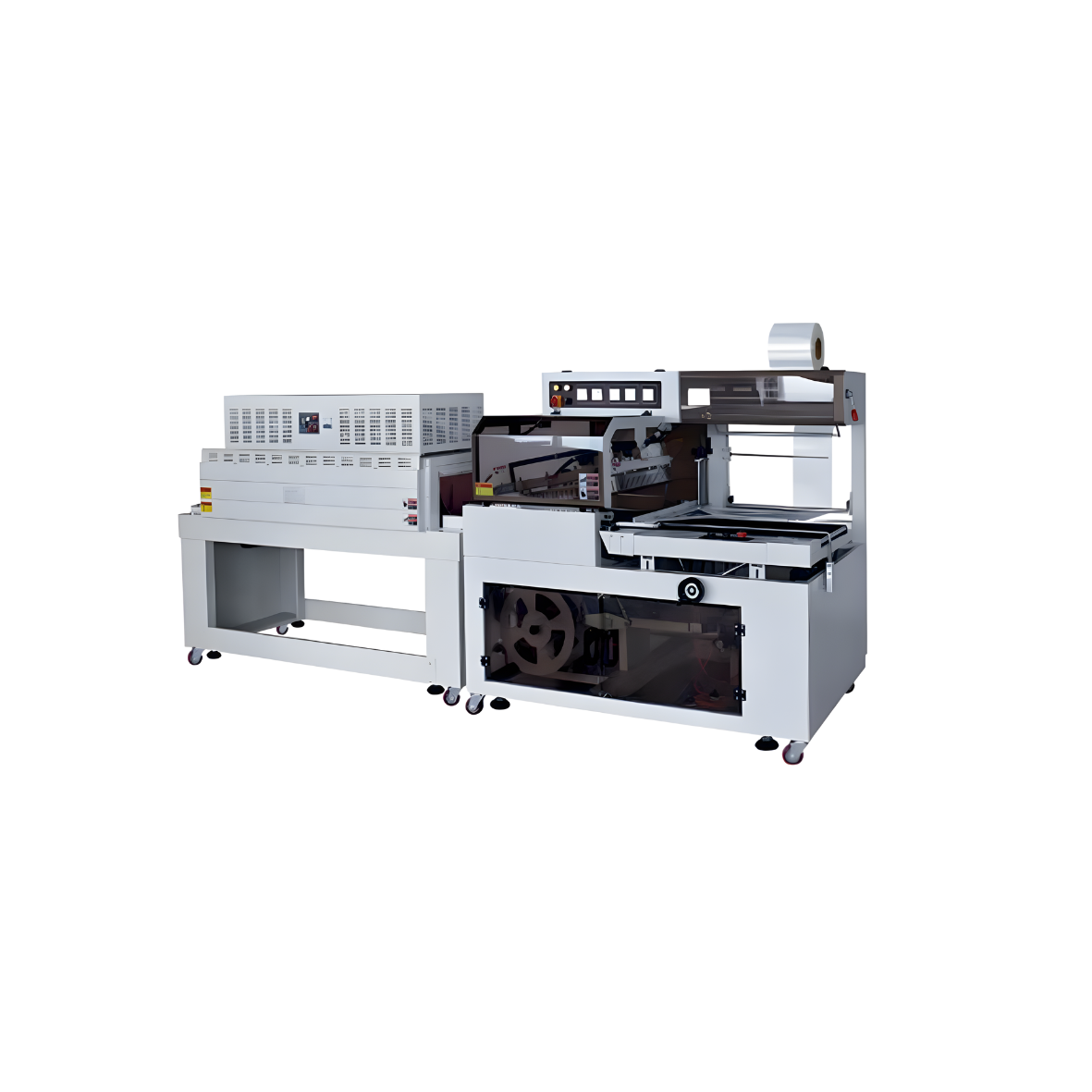

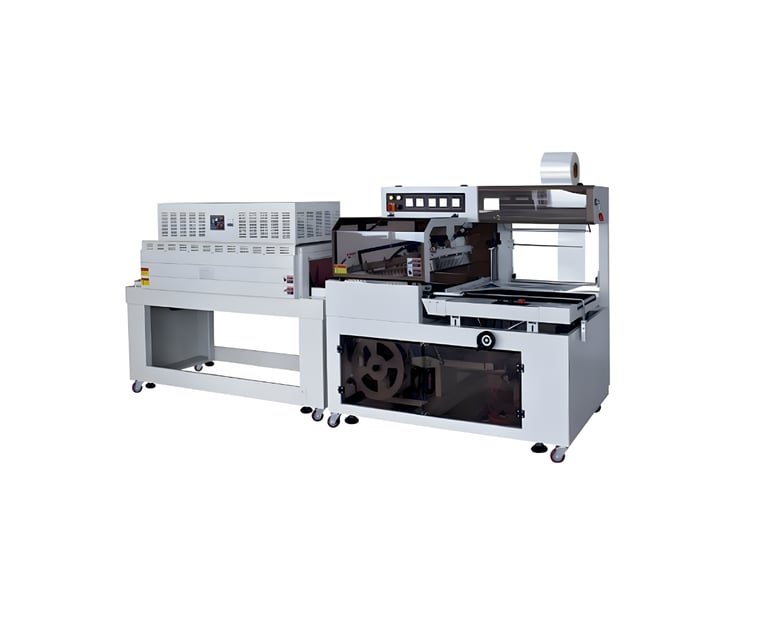

Automatic L Sealer with Shrink Tunnel Kissing Device

The Automatic L-Sealer with Shrink Tunnel is a high-speed shrink packaging solution designed for precise sealing and uniform shrinking of products. It delivers strong, dust-proof, and moisture-resistant packaging, making it ideal for food, pharmaceutical, and industrial applications.

Key Specifications Automatic L-Sealer with Shrink Tunnel Kissing Device

• Model: QL5545 L-Type Sealer

• Power Supply: 220V, Single Phase, 50–60Hz

• Power: 1.3 kW

• Max Sealing Size: 500 × 350 × 100 mm

• Capacity: 0–20 packs/min (depending on product size)

• Film Type: Center-folded polyolefin (POF) film

• Max Film Width: 600 mm

• Air Compressor Requirement: 0.3 m³/min

• Control System: PLC

• Machine Body: Painted steel

• Machine Size: 1700 × 900 × 1400 mm

• Weight: 320 kg

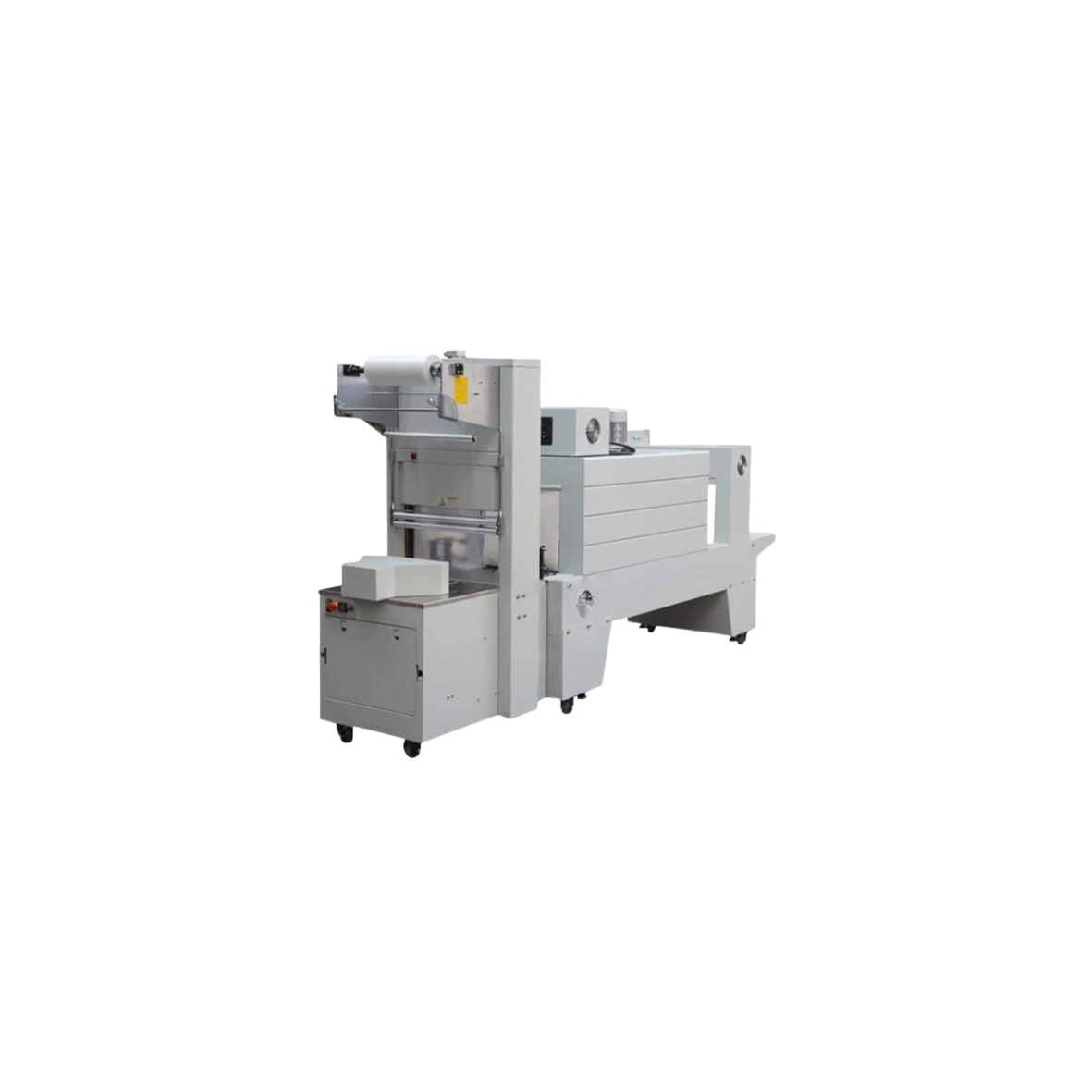

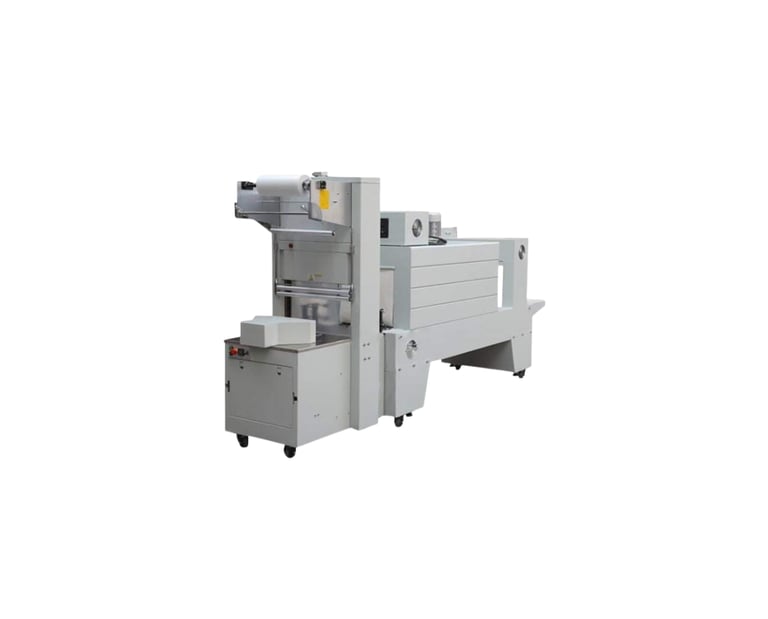

Web Sealer with Shrink Tunnel

The Web Sealer with Shrink Tunnel Machine provides efficient sealing of products into shrink film followed by uniform heat shrinking for tight, professional packaging. It’s ideal for bundling multipacks, bottles, boxes, and trays in food, beverage, pharmaceutical, and industrial applications.

Web Sealer with Shrink Tunnel Specifications (Typical):

• Sealing Type: Continuous web sealing

• Tunnel Heating: Hot air shrink tunnel with adjustable temperature

• Tunnel Size: (example) 900 × 450 × 250 mm

• Power Supply: 220/380V AC, 50Hz / 3 Phase

• Power Consumption: (example) 6.5 – 9.6 kW

• Conveyor Speed: Adjustable (example 0–12 m/min)

• Control: Variable frequency drive + temperature controller

• Film Types: PVC/POF/PE shrink film

• Suitable For: Multipacks, trays, bottles, cartons
